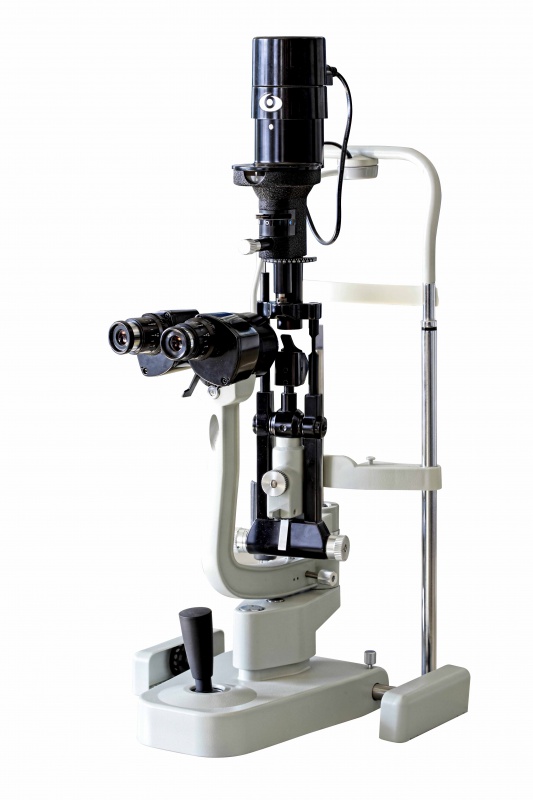

66-Vision Slit Lamp Microscope -YZ5H2



Microscope Type Galileo magnification changer with converging
Magnification Change Five-step revolving drum
Eyepieces 12.5x

(Field of View)

6x(φ33 mm), 10x( φ22.5 mm ), 16x( φ14 mm ),25x( φ8.8 mm ), 40x( φ5.5 mm )
Pupilary Adjustment 55 mm~75 mm
Diopter Adjustment -5D~+3D
 Slit Illumination
Slit Width continuously variable from 0 ~14 mm adjustable(at 14 mm, slit becomes a circle )
Slit Height continuously variable from 1 mm~14 mm
Slit Angle 0°~180° ( continuously adjustable both vertical and horizontal)
Slit Inclination 5°,  10°, 15°,  20°
Aperture Diameter φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm
Lamp 12V/30W Halogen bulb
Maximum Illuminance ≥120,000 Lx
Filter Thermal safety, grey, red-free, cobalt blue
Longitudinal Movement 90mm
Lateral Movement 100mm
Vertical Movement 30mm
Vertical Moement 80mm
Fixation Red LED
Input AC 220V /110V ±10%, 50Hz/ 60Hz
Power Consumption 58VA
Output voltage Lamp: 7.2V ~ 11.6V
Fixation: 7.2V
Electrical Safety Standard IEC 60601-1, Class I, Type B
Dimension & Weight
Packing Volume 720 mm x 495 mm x 480 mm
Total Weight 24 Kg
Net Weight 21 Kg
